产品分类 -> DVI延长器光端机延长线光纤 -> DVI光纤延长器 -> DVI双链路光端机DDFX-100-TR

DVI双链路光端机DDFX-100-TR

DVI双链路光端机DDFX-100-TR

DVI双联光纤延长器DDFX-100-TR可以把WQXGA (2560x1600)60Hz或 WQUXGA(3840x2400)33Hz的Dula-Link DVI高清非压缩信号通过多模 LC光纤延长至500米。


The detachable Dula-Link DVI extender DDFX-100-TR offers easy connection to your existing system with minimum efforts and no modification, since it is designed compactly enough and with all industry standard connectors. The metallic die-casting enclosure gives reliable installation, excellent EMI shields and heat dissipation in harsh and noisy environments.

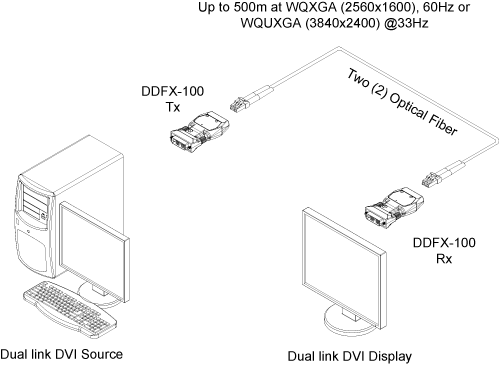

DDFX-100-TR transmits uncompressed WQXGA (2560x1600), 60Hz or WQUXGA (3840x2400), 33Hz refresh ratio of Dual-Link DVI up to 500meters (1640feet) over two (2) LC multi-mode fibers. The EDID in a display can be read and restored by just plugging once transmitter to the display.

This Self-EDID programming feature makes the installation of DDFX-100-TR more easy and flexile at any variable resolution display systems.

For better installation and flexibility, it features patent pending Self-EDID management, reading and restoring of the information by just plugging to the display. It is also certified with FCC/CE for various applications

•   Small and solid aluminum enclosure
•   Easy and simple installation with two (2) multi-mode fibers
•   Reads and restores the targeted EDID in the transmitter (Self-EDID)
•   Provides Power, Status (Signal transmission in transmitter and signal detection in receiver) LED
     indicators
•   Auto-power switching
•   Supports up to WQXGA (2560x1600), 60Hz or WQUXGA (3840x2400), 33Hz
•   Uncompressed DVI signal up to 500m (1640ft) over two (2) multi-mode fiber
•   Operating temperature: 0 ~ 50℃
•   Storage temperature: -30 ~ 70℃
•   Input power: +5V 1A
•   Size (WDH): 39 x 72 x 15mm

产品关键词:DVI光纤延长器 Duallink光端机 DVI双链路光端机 DVI双通道光端机 DDFX-100-TR
