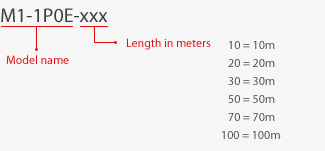

DVI Point to Point Hybrid Cable: M1-1P0E-xxx

DVI Point to Point Hybrid Cable: M1-1P0E-xxx

Point-to-Point DVI hybrid cable, M1-1P0E has four (4) multi-mode fibers for TMDS transmission and copper wires for DDC/HDCP in a jacket. It transmits uncompressed WUXGA (1920x1200) 60Hz, 1080p DVI signal up to 100m (328feet). It supplies +5V DC power eith

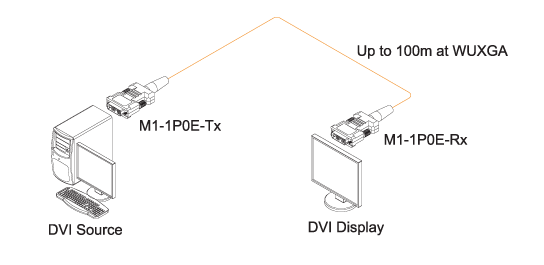

Point-to-Point DVI hybrid cable, M1-1P0E has four (4) multi-mode fibers for TMDS transmission and copper wires for DDC/HDCP in a jacket. It transmits uncompressed WUXGA (1920x1200) 60Hz, 1080p DVI signal up to 100m (328feet). It supplies +5V DC power either from video sources or external power adapter in the shipping group.

Featrue&Tech Specs

•   Compact design of end connector allows direct connection to the host video card and display
•   Auto-power switching

•   Hybrid cable with four (4) multi-mode fibers for TMDS transmission and copper wires for DDC/HDCP
•   Extends WUXGA (1920x1200), 60Hz and 1080p up to 100m (328feet)
•   Supports bit rate up to 1.65Gbps/ch
•   Operating temperature: 0 ~ 50℃
•   Storage temperature: -30 ~ 70℃
•   Input power: +5V 1A
•   Size (WDH): 39 x 53 x 15.4mm

Keywords：M1-1P0E DVI-Hybrid-Cable Opticis
